#20 HO Scale NEM 362 European-Style Couplers - Extra Long

This industry leading coupler features an NEM 362 European Style Coupler. The #20 Magne-Matic® NEM 362 European Style Coupler that is mounted in the HO-Scale NEM 362 draft gear box pocket.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Two pair per package
(w/o Draft Gear Boxes)

Made in the U.S.A.

HO-Scale

Package Includes:

• (2) Pair #20 Couplers (Aassembled) - Extra Long Underset
• (2) #622 Knuckle Springs

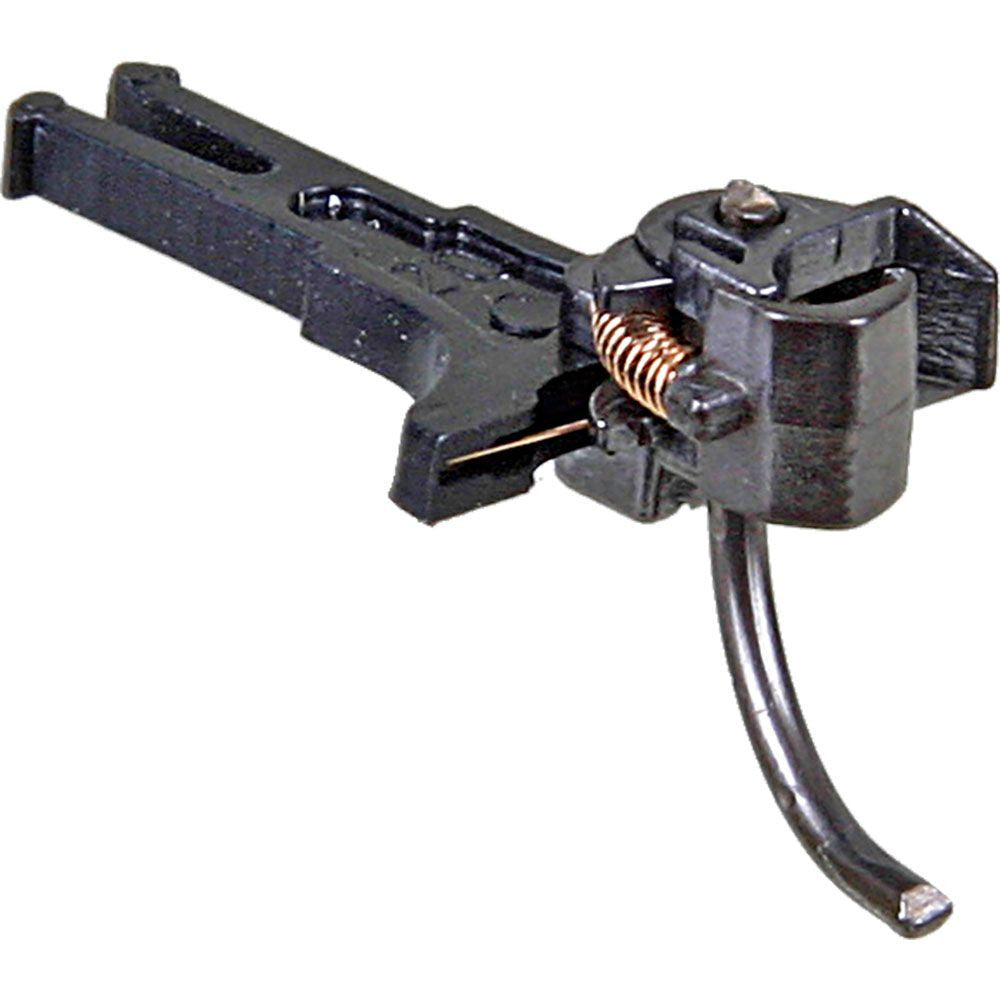

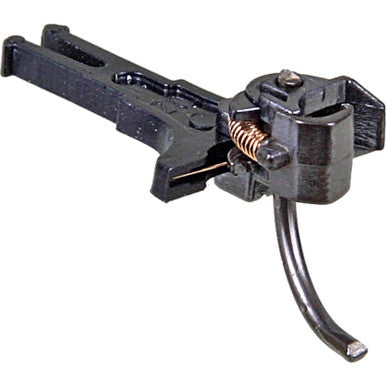

#20 Coupler Features:

• Material - Metal Knuckle, Plastic Coupler Swallow-tail Shank
• Shank Length - Extra Long (12.30mm , .484 inch , 31/64") (pulling face to the dovetail sholder)
• Coupler Offset - Underset Shank
• Knuckle Spring - #622
• Centering System - NEM European Style Coupler
• Head - Standard Head

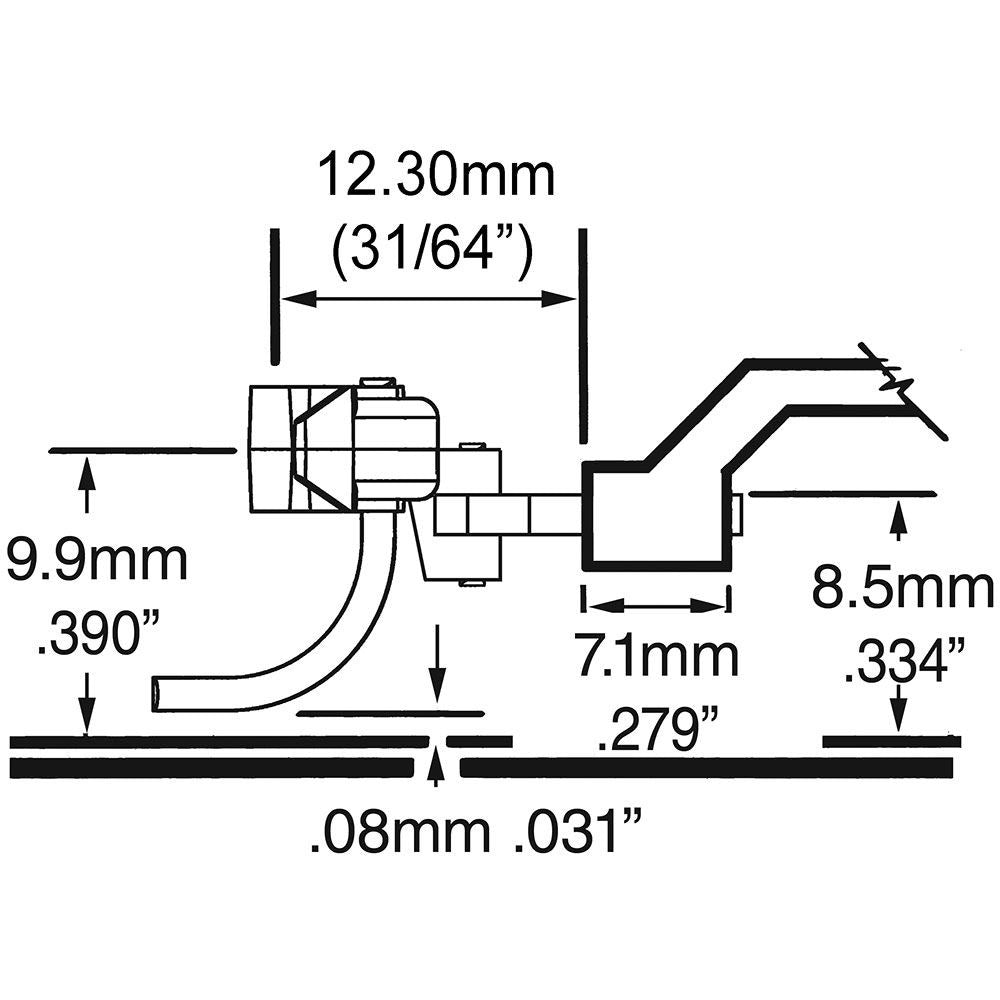

Mounting Specifications:

• Shank Length - 12.30mm , .484"
• Coupler Centerline Height - 9.9mm , .390"
• Trip Pin Height - .08mm , .031"
