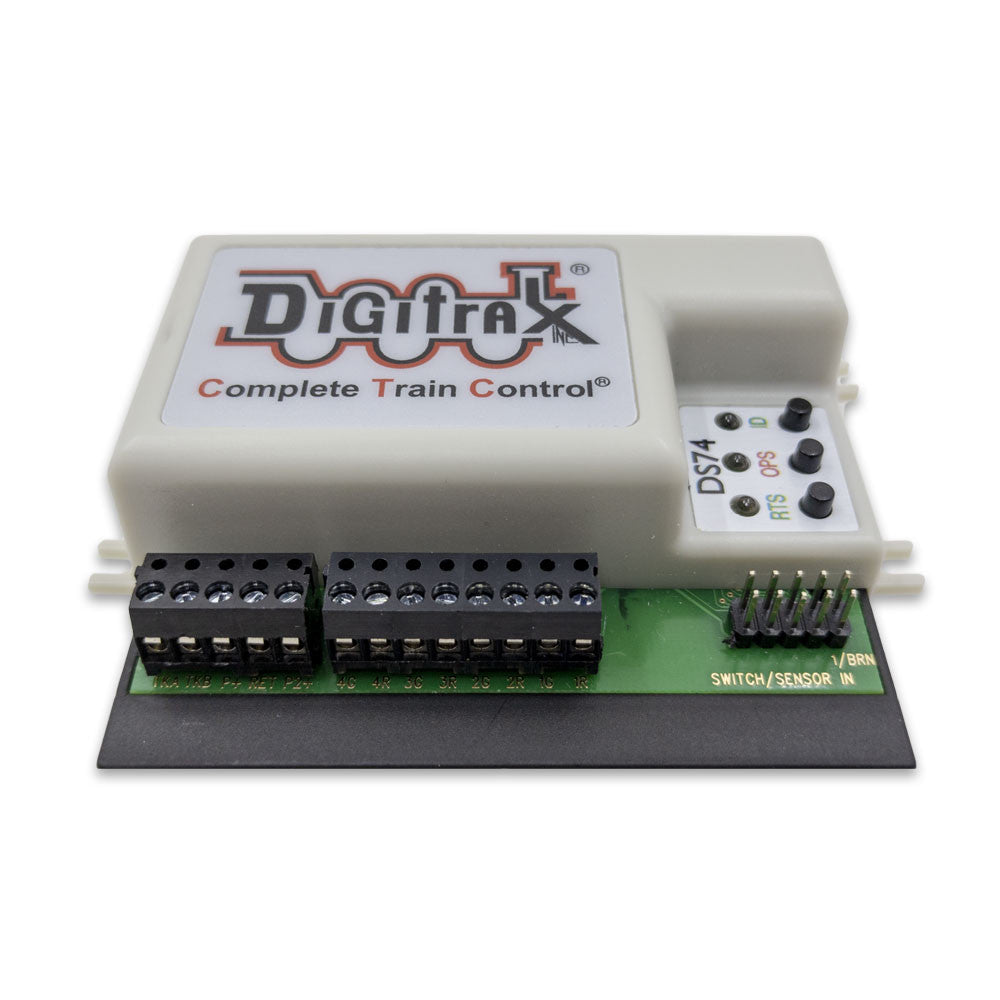

Digitrax DS74 Quad Switch Stationary Decoder

• Quad switch decoder for Solenoid or Slow-motion turnouts.
• Configurable for Capacitive Discharge with balky solenoids.
• Configurable for on/off control of 8 layout lights.
• Plug and play wire connectorization.
• Works with compatible LocoNet Systems.
• Stabilized and adjustable output voltages.
• Option setup switches for configuration.
• On-layout programmability via LocoNet.
• 8 onboard Routes, with EZ-Route setup.
• Routes directly editable using latest DT602 IPL.
• 8 input lines for Switch and Detection inputs.
• Field firmware update via IPL over LocoNet.
• DC 2mm jack for reliable power input.
• Optional DCC track inputs for limited feature capabilities.

DS74 Accessories available for order in our store:

DSXCP1:

• Fascia mount Switch control device.
• Wire to DS74 input cable, or use DSXC4 for plug and play.
• Two color leds display current Switch state.
• Supplied with 3 wire control cable.

DSXC4:

• Input interconnect board for DS74.
• Provides plug and play connectivity for DS74 inputs.
• Supplied with ribbon cable to plug into DS74 10 pin Input header.
• Allows plug-in of up to 4 DSXCP1 fascia controls.
• Direct ribbon cable plug-in header to BD4N detectors.
• 8 pin screw terminal plug for optional wire access to 8 input lines.
