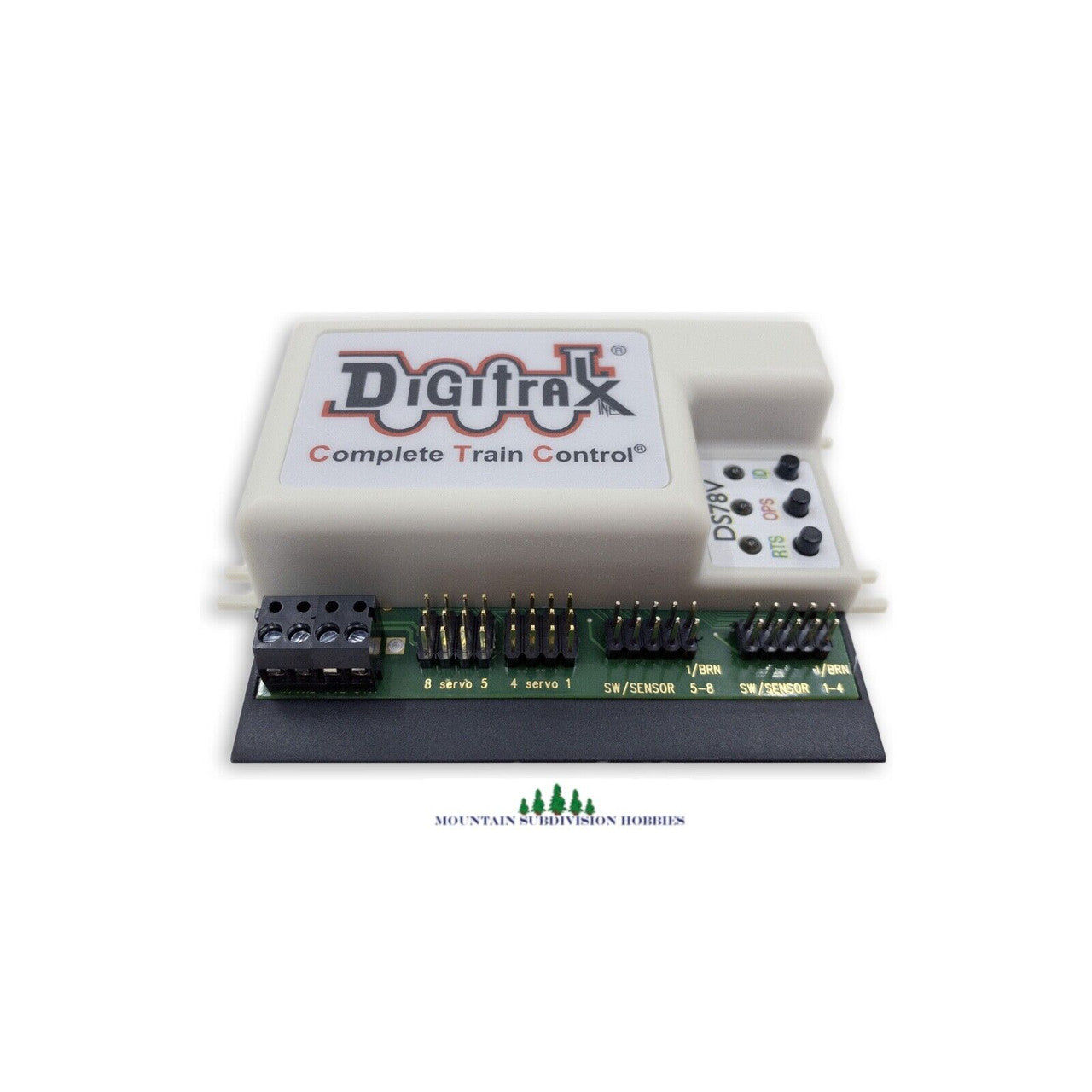

Digitrax DS78V 8 Servo LocoNet Stationary & Accessory decoder use with DSXSV9

Features:

• 8 output channel LocoNet based Stationary decoder for operating eight 9G-type servo motors for turnout or general motion control.
• Plug-in connectors for simple and easy installation and service.
• User defined 8 consecutive switch (SW) addresses in 2000+ SW range. Stabilized 5 Volt servo drive voltages.
• Easy setup with Option Switches (OPSW) or LocoNet CV programming. Power input from 2mm DC jack, or DCC track voltage, 10V min to 20V max. 16 easy to setup System Routes, with 8 SW Entries each.
• 16 input control lines; 8 for Output/SW change and 8 Sensor/DS inputs. Additional advanced LocoNet Configuration modes using DT602 throttles.

Parts list:

• 1 DS78V Stationary Decoder
• 2 10-pin pluggable input cables
• 1 Instruction Sheet

We also have the DSXSV9 Servo with bracket in our store.

Warranty: No Worries Digitrax Warranty (see instructions for details)

Manual: https://www.digitrax.com/media/apps/products/stationary-decoders/ds78v/documents/DS78V_instructions.pdf

Specifications: https://www.digitrax.com/media/apps/products/stationary-decoders/ds78v/documents/DS78V_Spec_Sheet.pdf
