Soundtraxx

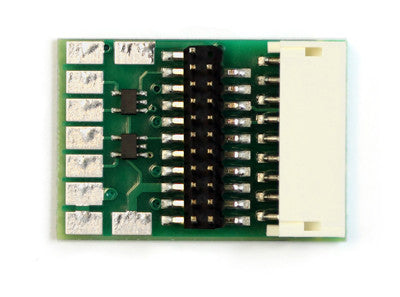

810159 JST-21PNEM Adapter

810159 JST-21PNEM Adapter

$13.89
$16.95 $13.89
Sale Sold out

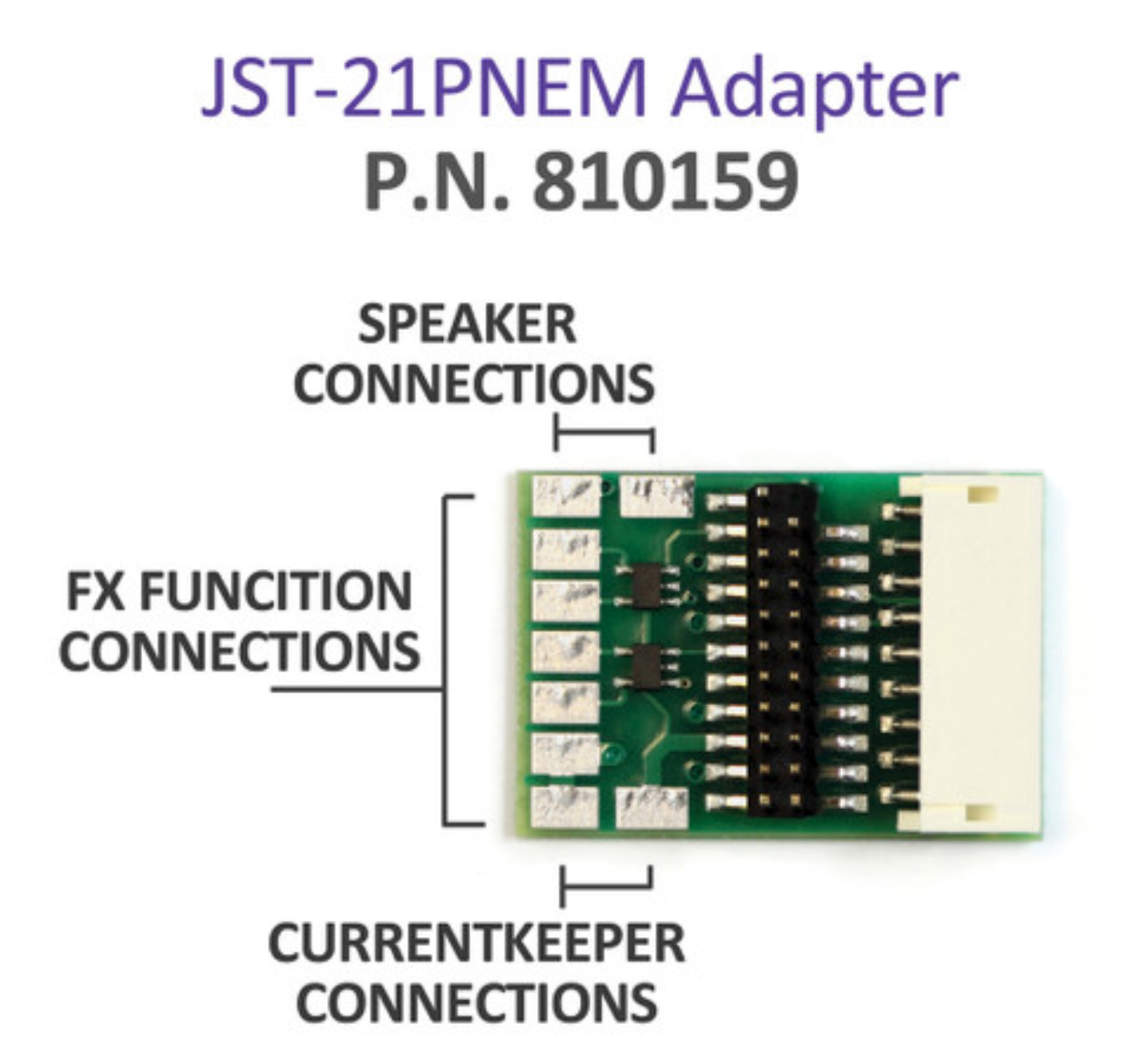

Easily adapt any SoundTraxx 21PNEM decoder to an NMRA 9-Pin DCC "quick plug" equipped model. It can also be used with a SoundTraxx 9-Pin JST Power Harness (P.N. 810069) to create a universal-style decoder. Supports up to 8 lighting functions and has solder pads for CurrentKeeper, speaker connections, and extra lighting outputs.

Specifications:

  • Dimensions: 22.5 x 16 x 7.5mm
  • Function Outputs: 8
  • Max. Function Current: 100mA (each output)
  • CurrentKeeper Solder Pads: Yes
  • Speaker Solder Pads: Yes
