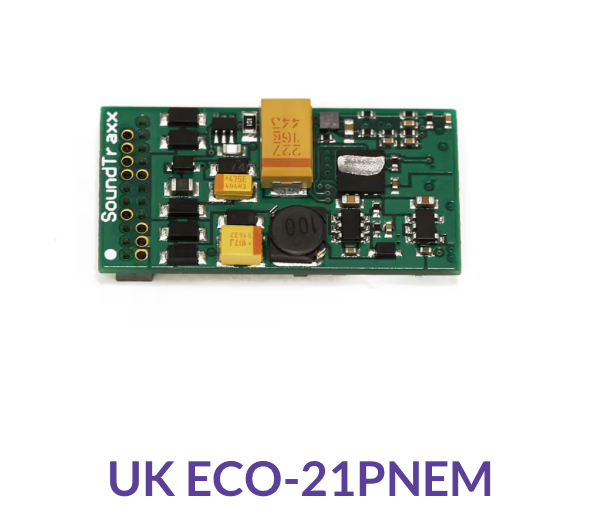

Econami UK ECO-21P NEM DCC Sound Decoder

This 1-amp Digital Sound Decoder simply plugs into models equipped with an NEM-supported 21-pin socket. The UK ECO-21PNEM can be wired to a CurrentKeeper (P.N. 810140 or 810160) to maintain performance over dirty track and switches.

Product Specifications

• Dimensions: 30.5 x 15.5 x 6.55mm
• Max. Motor Stall Current: 1A
• Max. Function Current: 100mA (each output)
• Function Outputs: 6
• Audio Amplifier: 2 Watt, 8-Ohm Load
• DCC Track Voltage: 7V – 22V
• Sound Channels: 12

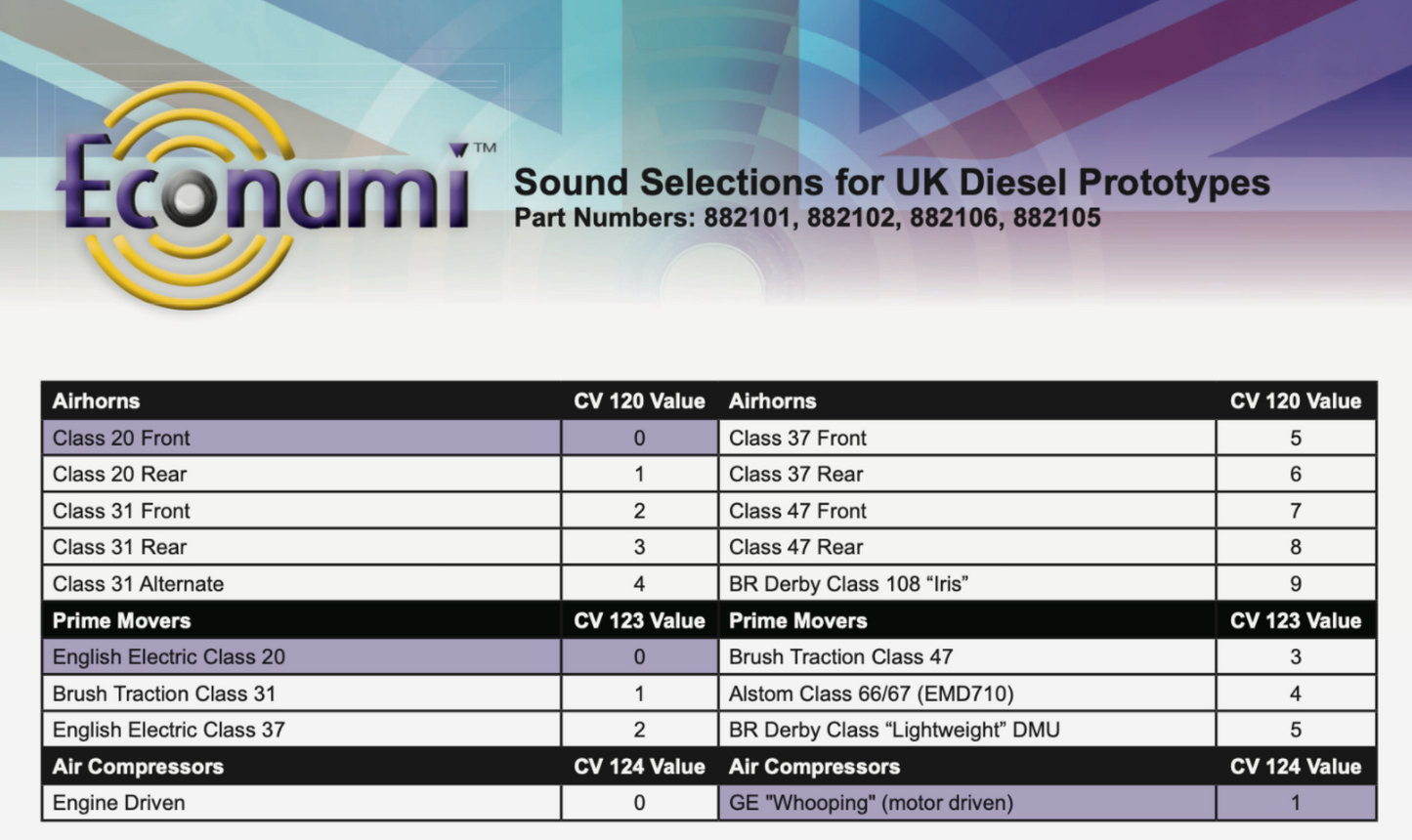

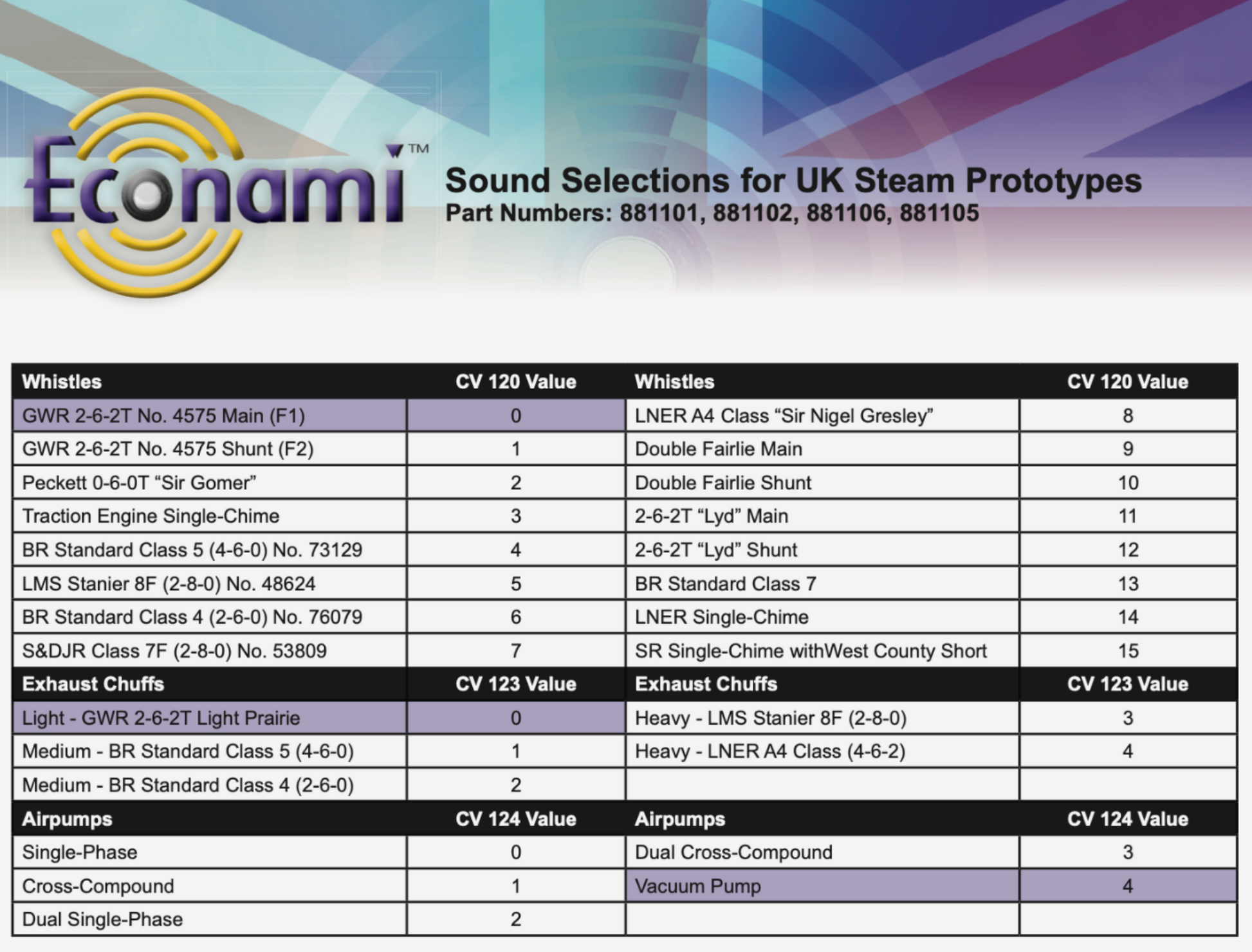

IMPORTANT: THIS DECODER HAS ONLY UK SOUNDS
