Train Control Systems

TCS 1013 MC2-KA pre-wired for Keep Alive (was 1426; same as MC2-KA)

TCS 1013 MC2-KA pre-wired for Keep Alive (was 1426; same as MC2-KA)

$28.89
$34.95 $28.89
Sale Sold out

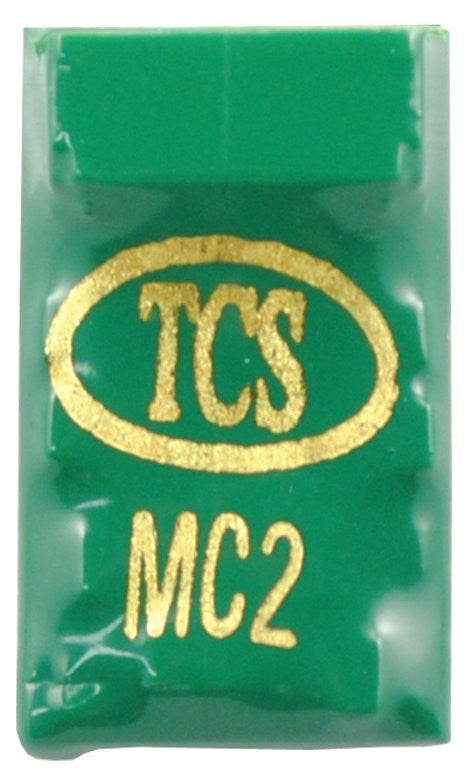

  • The MC2 is a 2-function HO and N scale hard-wire decoder with a 7-pin JST harness. Harness is included in this package.

  • The MC2 is designed for use in locomotives where a T-series is too large, but you do not want a permanent hard-wire solution as with the M-series.

  • Interface Type: Hard-Wire / Direct-Plug (7-Pin JST)
  • Dimensions (L x W x H): 0.709" x 0.419" x 0.191" or 18.02mm x 10.63mm x 4.85mm
  • Scale: HO Scale N Scale
  • Continuous/Peak: 1.0/2.0 Amp
  • Total Functions: 2
  • Function Rating: 100 mA
  • 12V Outputs: 2

The MC2 is a 2-function HO and N scale hard-wire decoder with a 7 pin JST socket. The MC2 is designed for use in locomotives where a T-series or M-Series decoder is too large.

  • Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
  • Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
  • DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
  • Variable Momentum: Allows you to make custom acceleration and deceleration curves.
  • Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
  • Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
  • Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
  • Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
  • Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
  • Airwireâ„¢ Compatible: Fully compatible with Airwireâ„¢ operation.
  • User-Loadable Speed Tables: Configure custom speed curves and set speed limits.

All information provided by TCS.
