Train Control Systems

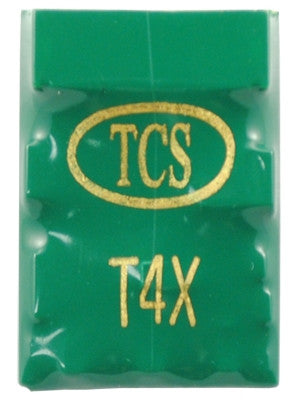

TCS 1024 T4X 4 Function Decoder

TCS 1024 T4X 4 Function Decoder

$17.49
$0.00 $17.49
Sale Sold out
  • Interface Type: Hard-Wire
  • Direct-Plug (9-Pin JST)
  • Dimensions (L x W x H): 0.969" x 0.661" x 0.193" or 24.61mm x 16.79mm x 4.9mm
  • Scale: HO Scale
  • Continuous/Peak: 1.3/2.0 Amp
  • Total Functions: 4
  • Function Rating: 100 mA
  • 12V Outputs 4

The T4X has added Blue and Black/White wires to use a KeepAlive device. This model now includes a 2-pin JST Plug for the KA-P Family of KeepAlive® devices. This decoder may be hard-wired or plugged directly into any locomotive with a 9-pin JST plug. The T4X may be used in locomotives with ditch lights and forward and reverse headlights. NOTE: Keep-Alive is not included, see our store for them.

Note: As of August 2022, All T4 decoders now come equipped with a plug/jack for a Keep Alive® with the corresponding connector.

Harnessed variant SKUs of the T-series have also been discontinued. If your locomotive is equipped with an 8-pin NMRA plug, you should consider the DP2X, or use the T4A with an adapter harness which can be found under our Harnesses section.

  • Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
  • Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
  • DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
  • RailCom®: This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
  • Variable Momentum: Allows you to make custom acceleration and deceleration curves.
  • Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
  • Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
  • Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
  • Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
  • Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
  • Airwireâ„¢ Compatible: Fully compatible with Airwireâ„¢ operation.
  • User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
