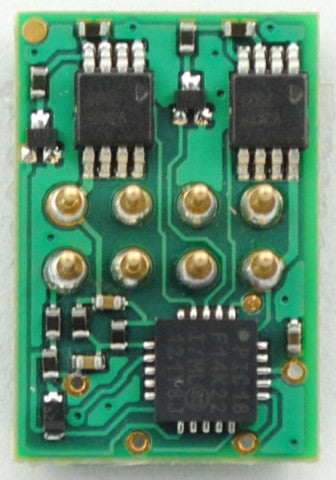

TCS 1028 DP2 DCC Decoder | NMRA 8-pin

HO-Scale decoder designed as a direct-plug replacement decoder for engines equipped with 8-pin NMRA sockets. By far one of the easiest decoders to install, the DP2X can be plugged into many locomotives with no effort.

• Interface Type: Direct-Plug (8-Pin NMRA)
• Dimensions (L x W x H): 0.474" x 0.702" x 0.12" or 12.04mm x 17.83mm x 3.05mm
• Scale: HO Scale
• Continuous/Peak: 1.0/2.0 Amp
• Total Functions: 2
• Function Rating: 80 mA
• 12V Outputs: 2

Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.

Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.

DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.

RailCom®:
This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.

Variable Momentum:
Allows you to make custom acceleration and deceleration curves.

Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.

Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.

Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!

Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.

Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.

Airwire™ Compatible:
Fully compatible with Airwire™ operation.

User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
